PowerAire Quad-M - 3-Sensor Quad-Fan Assist - 200 to 240V

Please note, the PowerAire Quad-M - 3-Sensor Quad-Fan Assist has been discontinued. To discuss alternative options, please contact your Server Racks Online sales representative.


The PowerAire Quad fan assist module is equipped with 4 fans connected in parallel to provide built in redundancy. This unit is only 4" deep making it ideal for retrofit situations with finished floor heights as low as 7.5". Multiple control options are available to automatically turn on the fan when conditions require additional cooling.

  • 4 x EC Fans for 100% variable airflow supply and redundancy
  • Three probes for accurate temp control
  • Visual user interface for set point control
  • Supports 0-16kW IT Load at 0.0" H2O
  • Consumes < 255 W at 100% fan speed
  • 200-240V version (FLA: 1.2A; MCA: 1.5A; MOCP: 15A)
  • 23.1" x 26.7" x 4" for use in 7.5" FFH or Greater
  • Fan speeds infinitely variable 0-100%
  • High Precision, Quick Response Temperature Measurement
  • Viewable Peak Temp for walkthrough check of each rack

Tate floor panels are only compatible with Tate Raised Floor Systems. Please check your setup carefully - no returns accepted. For larger quantaties, please contact us

Tate PowerAire Quad-M


Please call 1-866-722-5776 to order

Download IconTate Raised Floor Systems (PDF)

PowerAire Quad-M - 3-Sensor Quad-Fan Assist Application

PowerAire Quad-M - 3-Sensor Quad-Fan Assist Application2

BMS Interface

BMS Interface cards are available to allow the PowerAire Quad-M to interface with the existing BMS. Currently BACnet IP, SNMP, (PN tate-16152) and BACnet MS/TP (PN tate-16153) protocols are available for remotely monitoring and controlling the units. This interface allows for the retrieval of current inlet temperatures and fan speed, as well as adjusting individual unit temperature set points.

Airflow Performance Information (Paired with DirectAire Panel)

Static Pressure
(inH2O)		0% Power (CFM)100% Power (CFM)
-0.081695-
-0.061806-
-0.051856-
-0.041902-
-0.021978-
0.002000-
0.022012254
0.042061365
0.052086411
0.062111452
0.082158525
0.102199590
0.122235648
0.142263702
0.162284752
0.182297799
0.202303844

Airflow Performance Information (Paired with DirectAire AL Panel)

Static Pressure
(inH2O)		0% Power (CFM)100% Power (CFM)
-0.081710-
-0.061815-
-0.051862-
-0.041920-
-0.021992-
0.002020-
0.022018254
0.042110340
0.052106380
0.062140470
0.082130570
0.102158722
0.122169809
0.142290910
0.162290980
0.1823191067
0.2023251140

PowerAire Quad-S - Single-Sensor Quad-Fan Assist Application5

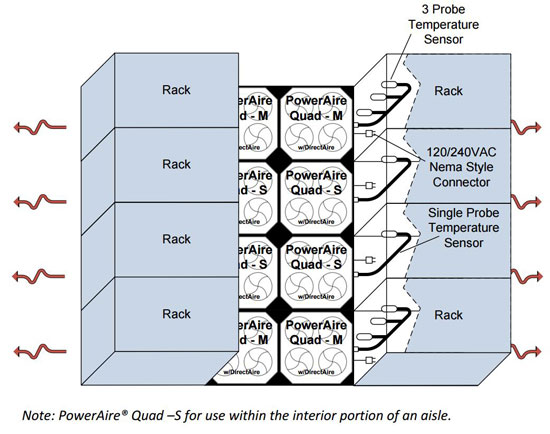

PowerAire Quad-M - 3-Sensor Quad-Fan Assist Application3

INCLUDED COMPONENTS

  • PowerAire Quad- M
  • 4 x Tool-less String Hangers
  • 4 x Alternative Corner Lock Hangers
  • 3 x Temperature Monitoring Probes and Control Cable
  • Zip Ties
  • 6' Power Cord (200-240V) (IEC C14 inlet - NEMA L6-15R outlet required)

AIRFLOW PANEL OPTIONS

  • DirectAire
  • DirectAire Al
  • DirectAire X2

UNDERSTRUCTURE OPTIONS

  • 2' Bolted Stringer Steel System
  • 4' Bolted Stringer Steel System

PowerAire Quad-M - 3-Sensor Quad-Fan Assist Application4
