Eaton RackPack - 30U x 24"W x 40D - Enclosure with 6kW UPS and (2) 24A PDU's, 208V

Weather your IT environment is large or small or you manage equipment remotely or locally, the Eaton ETN-RP30UP 30U RackPack solution has you covered by bundling the key elements into a single part number. RackPack provides easy painless planning, and best-in-class power management, allowing you to organize, protect and manage your environment more effectively.

ETN-RP30UP RackPack components:

  • Vantage S2 Enclosure - 30U x 24"W x 40"D
  • Cable D-Ring Kit (Qty: 4)
  • 1U Tool-less Blanking Panel (Qty: 10)
  • Hook-n-Loop Fastener Buckle Straps (Qty: 10)
  • 9PX 6K Uninterruptable Power Supply
    • Rating: 6 kV / 5.4 kW
    • Input: (1) Terminal block with L6-30P - 6ft cable
    • Output: (2) NEMA L6-20R + (2) NEMA L6-30R + Hardwired
    • Type: On-Line, Double Conversion
    • Power: 200-240V
  • 9PX 6K Extended Battery Module
  • 0U Monitored G3 ePDU's (Qty: 2)
    • Input: (1) NEMA L6-30P - 10ft Cable - 5.76 kW Max (per PDU)
    • Output: (12) C13 + (2) C19 (per PDU)
    • Type: Monitored - 0U Vertical mount (per PDU)
    • Power: 200-240V - 1 Phase, 24A (per PDU)
  • Environmental monitoring probe
  • Intelligent Power Manager Software: Silver Edition

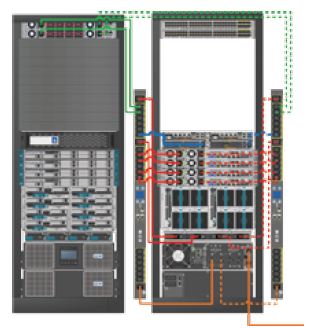

ETN-RP30UP Application

Eaton ETN-RP30UP - Click to enlarge

Eaton Powerware
Price: $18,000.00
NOW: $14,400.00
Save: $3,600.00
Free Project Evaluation
Rack Units30U
Shipping
Shipping Method
Dock-to-Dock Ground Service (+$320.00)
Ground if you do not have a Loading Dock (+$380.00)
Optional Shipping Services
Server Racks Online Extra Options None
Lift gate (+$65.00)
Inside Delivery (+$150.00)
Inside Delivery and Lift Gate (+$215.00)

ETN-RP30UP Features Image 2

ETN-RP30UP Features Image 1

Eaton ETN-RP30UP Specifications:

Download Icon
Eaton 9PX UPS Brochure (PDF)
Eaton G3 MI PDU Brochure (PDF)
Eaton EMI121-10 PDU Technical Specifications (PDF)

Enclosure Physical
Height30U
Width24"
Depth40"
Weight Capacity (Static)2,000 lbs
ColorBlack
Cable Management
Blanking Panels1U - ETN-PBP1U10 (Qty 10)
D-RingsETN-STLDRING (Qty 4)
Hook-n-Loop Fastener StrapsETN-CMVBCKL (Qty 10)
UPS - Battery Backup
TypeDouble-conversion, On-line
ConfigurationRack/Tower
Part Number9PX6K
ColorBlack and silver
Rating (VA/Watts)6000/5400
Warranty2 years
Efficiency93% with resistive load
UPS Power Input
Connection(1) Terminal block with L6-30P
Input Cord6 feet (1.8 meters)
Input Voltage RangeFull load: 176-276V, Derating: 100-276V
Nominal Voltage208V default (200/208/220/230/240V)
Frequency50/60 Hz
Frequency Range60 Hz: 50–70 Hz, 50 Hz: 40–60 Hz
Input Power Factor>99
Input Current Distortion<5%
UPS Power Output
Nominal Voltage208V default (200/208/220/230/240V)
Output voltage regulation±1% steady-state
Voltage THD<2% for linear loads
Output Receptacles(2) NEMA L6-20R + (2) NEMA L6-30R + Hardwired - see manual for terminal block layout
Power Factor0.9
Transfer Time0 ms
Circuit Breaker(2) 20A for L6-20R
UPS Extended Battery Module
Part Number9PXEBM180RT (Quantity 1 included with initial bundle)
Battery DescriptionSealed, lead-acid; maintenance free
Maximum number of extended battery modules (EBM)Add up to 4 extended battery modules (EBM)
Battery ManagementABM technology; 3-stage charging extends battery service life by 50% and provides advance warning for battery replacement
Battery ReplacementHot-swappable internal batteries and extended battery modules (EBMs)
Start On BatteryCold-start enabled; first cold start is always forbidden
UPS Communications
User InterfaceGraphical display. UPS status in a single view.
LEDs4 status-indicating LEDs
Communication PortsRS-232 (RJ45) ports; USB port as standard (HID). 6-foot RS-232 and USB cables included
Communications Card SlotsNetwork Card-MS (included)
Power Management SoftwareEaton Intelligent Power Software Suite CD (included)
Environmental Monitoring ProbeEaton Environmental Monitoring Probe UPS Connectivity Device (included)
PDU - Power Distribution Strips
TypeMonitored
Par NumberEMI121-10 (Quantity 2 included in the bundle)
AvailabilityTop Sellers 0-2 week lead time
U Height21U - 0U Vertical Mount
PDU Physical
Dimensions (H x W x D, inches)35.5 x 2.05 x 2.1
Mounting Style0U Vertical
PDU Power Input
Max kW5.76
Plug(1) NEMA L6-30P
Cable Length (ft)10
Voltage200-240V - 1 Phase
Current24A
Current MonitoringInput, Section, +/- 1%
Frequency50-60 HZ
PDU Power Output
Outlets(12) IEC 60320 C13 with outlet grip + (2) IEC 60320 C19 with outlet grip
Circuit Breakers(2) 20A
Outlet Controlno
Local Switchesno
PDU Control & Interface
Environmental InterfaceOptional EMP001
Serial InterfaceRS232
Ethernet Interface10/100 Ethernet
Voltage MonitoringYes
