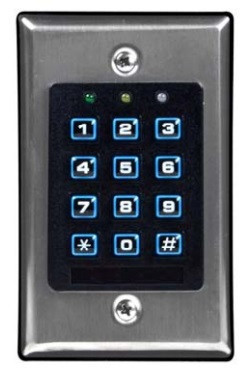

NTI E-ACK-V2
NTI E-ACK-V2
$60.00
$55.17
(You save
$4.83
)
- Two relay outputs controlled by two groups of independent user codes.
- Output 1: 12V3A relay for door strike
- Requires 12VDC external power supply (not included).
- The use of Output 1 will not provide support for alert messages through the ENVIROMUX system.
- Output 2: 1 Amp relay for other control applications.
- Output 1: 12V3A relay for door strike
- Normally closed and normally open dry contact for output relay #2.
- Operate with fail-safe or fail-secure locking device.
- LED indicators for operation status and system status.
- Door open announcer.
- Non-volatile memory in case of power failure.
- Door automatically re-locks after valid access to prevent "tailgate entry".
- User Codes:
- Output 1: 100 user codes.
- Output 2: 10 user codes.
- Duress code for door opening and reporting in the event of the owner opening the door under duress.
- Multi-task super user code for inhibiting (refuse access with user codes), overriding door lock (keep door open); and operating the two outputs under any condition.
- Powered by E-2D/5D/16D.
- Dimensions (WxDxH) in: 2.83x1.69x4.57 (72x43x116 mm).
- Two relay outputs controlled by two groups of independent user codes.
- Output 1: 12V3A relay for door strike
- Requires 12VDC external power supply (not included).
- The use of Output 1 will not provide support for alert messages through the ENVIROMUX system.
- Output 2: 1 Amp relay for other control applications.
- Output 1: 12V3A relay for door strike
- Normally closed and normally open dry contact for output relay #2.
- Operate with fail-safe or fail-secure locking device.
- LED indicators for operation status and system status.
- Door open announcer.
- Non-volatile memory in case of power failure.
- Door automatically re-locks after valid access to prevent "tailgate entry".
- User Codes:
- Output 1: 100 user codes.
- Output 2: 10 user codes.
- Duress code for door opening and reporting in the event of the owner opening the door under duress.
- Multi-task super user code for inhibiting (refuse access with user codes), overriding door lock (keep door open); and operating the two outputs under any condition.
- Powered by E-2D/5D/16D.
- Dimensions (WxDxH) in: 2.83x1.69x4.57 (72x43x116 mm).
