NTI E-4GU-x

4G USB Modems for NTI Environment Monitoring Systems

No reviews yet

Product Code: E-4GU-x

$140.00

$128.74

(You save $11.26 )

Choose Options:

4G band supported * 1/2/4/5/7/28 1/3/7/8/28/40

Include Two External Antennas

None
External Antennas for 4GU Modem (+ $14.00)

Current Stock:

Quantity:

To select the correct model, contact your mobile carrier BEFORE ORDERING to determine what band(s) must be supported by the modem for your area.

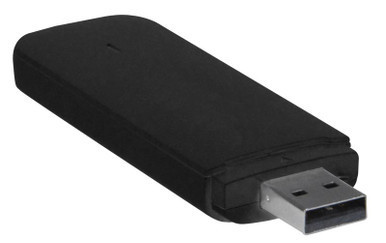

The E-4GU-x Modem is used to enable SMS alert messages to be sent from an ENVIROMUX Enterprise Environment Monitoring System to any user’s cell phone or device capable of receiving SMS messages. Before connecting the modem to the SYSTEM, a GSM SIM card configured for SMS messaging must be installed to the modem following instructions from the modem manufacturer. If the ENVIROMUX 3G/4G Data Transfer features are going to be used (E-xD SYSTEM models only), the SIM card must also be configured to support this instead of or in addition to SMS messaging.

Sends SMS text messages to a pager or cell phone when a sensor goes out of range of a configurable threshold.
SIM card supporting SMS messaging required (not included).
Supports fourth generation (4G) digital cellular standards.
USB 2.0 stick with Male USB Type A connector
Two CRC-9 ports for external antennas (sold separately, part # E-ANT2-4GU).
- Use E-ANT2-4GU to increase the signal strength of the 4G network.
E-4GU-1
- 4G LTE network band: 1/2/4/5/7/28
- 4G frequencies: FDD 700/850/1700/1900/2100/2600 MHz
- 3G network band: WCDMA(UMTS) DC-HSPA+/HSPA+/HSPA/UMTS 850/1900/2100MHz
- 2G network band: GSM/GPRS/EDGE 850/900/1800/1900 MHz
- Models purchased after 11/14/22 are compatible with E-2D/5D/16D operating firmware revision 4.21 or newer.
- Models purchased before 11/14/22 are compatible with E-2D/5D/16D operating firmware revision 2.60 or newer.
- Not compatible with CDMA carriers.
- Not acceptable for use by US federal agencies.
E-4GU-3
- 4G LTE network band: 1/3/7/8/28/40
- 4G frequencies: FDD 700/900/1800/2100/2600 MHz, TDD 2300 MHz
- 3G network band: WCDMA(UMTS) DC-HSPA+/HSPA+/HSPA/UMTS 900/2100MHz
- 2G network band: GSM/GPRS/EDGE 850/900/1800/1900 MHz
- Compatible with E-2D/5D/16D operating firmware revision 2.60 or newer.
- Regulatory approvals: CE, RoHS
When connected to the ENVIROMUX system, protrudes 2.88" from the edge of the case.
Will ship with either a white or black case
