Server Technology

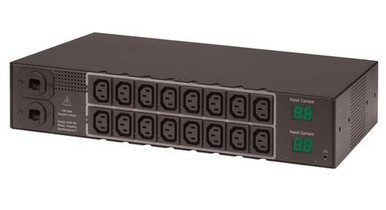

Fail-Safe ATS Expansion Unit 20A, 208-240V, (16) IEC C13, Inputs: (2) IEC C20
Product Code:
CX-16HF2A452
Condition:
New
Weight:
18.00 LBS
This product has been discontinued.
Start Call for Price Product View Page short code
Ended Call for Price Product View Page short code
- Current Rating: 20A
- Voltage Rating: 208-240V
- Outlets: (16) IEC C13
- Circuit Protection: Breakers
- Inputs: (2) IEC C20
- Form Factor: 2U x 17.2"W x 10"D
Connect this ServerTech CX-16HF2A452 Expansion Unit to a CW-16HF2A452 Cabinet ATS using the included RJ-12 cable to control four power input circuits and manage outlets (individual or groups) under 1 IP address.
- Input Connector - (2) IEC C20 Power Inlets (cords ordered separately)
- Current Rating - 20A
- Input Voltage Rating - 208-240V, 50/60 Hz
- Outlets - (16) IEC C13
Features:
- Type - Switched (Networked) with outlet ON/OFF/Reboot control
- Input Current Monitoring - Yes
- Form Factor - 2U, Horizontal Mount (Brackets Included)
- Branch Circuit Protection - User-resettable breakers
- Input Current LEDs - One per input feed
- Expansion Unit to Share One IP Address - Yes
- Temperature/Humidity Sensors - Up to 2 (P/N EMTH-1-1)
- Phase Synchronization Required? - Yes
- Current Rating: 20A
- Voltage Rating: 208-240V
- Outlets: (16) IEC C13
- Circuit Protection: Breakers
- Inputs: (2) IEC C20
- Form Factor: 2U x 17.2"W x 10"D
Connect this ServerTech CX-16HF2A452 Expansion Unit to a CW-16HF2A452 Cabinet ATS using the included RJ-12 cable to control four power input circuits and manage outlets (individual or groups) under 1 IP address.
- Input Connector - (2) IEC C20 Power Inlets (cords ordered separately)
- Current Rating - 20A
- Input Voltage Rating - 208-240V, 50/60 Hz
- Outlets - (16) IEC C13
Features:
- Type - Switched (Networked) with outlet ON/OFF/Reboot control
- Input Current Monitoring - Yes
- Form Factor - 2U, Horizontal Mount (Brackets Included)
- Branch Circuit Protection - User-resettable breakers
- Input Current LEDs - One per input feed
- Expansion Unit to Share One IP Address - Yes
- Temperature/Humidity Sensors - Up to 2 (P/N EMTH-1-1)
- Phase Synchronization Required? - Yes
