APC

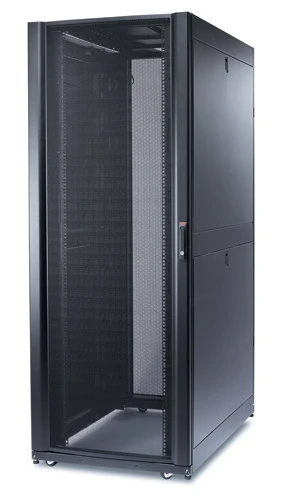

SX Enclosure - 47"(D), 750mm(W)
Product Code:
AR3350
UPC:
7.31304E+11
Rack Units:
42U
Width:
19"
Depth:
>40"
Door Type:
Perforated
Door Type:
Split Door
Features:
Lift-off Side Panels
Features:
Locking Handle
$4,100.00
$2,827.59
(You save
$1,272.41
)
- Height: 42U (78.4" / 1991mm)
- Weight Capacity: 3000 lbs.
- Depth: 48.1" (1222mm)
- Usable Depth: 47.2" (1199mm)
- Width: 29.5" (749mm)
- Rails: 19" EIA
The APC NetShelter SX AR3350 is a 42U 750mm Wide x 1200mm Deep Enclosure which is optimized for cable management, power distribution, and airflow management.
Includes: Baying hardware, Documentation CD, Key(s), Leveling feet, Mounting Hardware, Pre-installed casters, Side Panels, User Manual
APC AR3350 Specifications:
- Net Weight: 355.00 lbs. (161.36 kg.)
- Weight Capacity (static load): 3000.00 lbs. (1363.64 kg)
- Weight Capacity (dynamic load): 2250.00 lbs. (1022.73 kg)
- Minimum Mounting Depth: 10.31 inches (262 mm)
- Maximum Mounting Depth: 41.62 inches (1048 mm)
- Rack Height: 42U
- Color: Black
- Vertical Posts: 16 gauge
- Front Door: 16 gauge
- Rear Door: 18 gauge
- Roof: 18 gauge
- EIA Mounting Rails: 14 gauge
- Side Panels: 18 gauge
- Regulatory Approvals: EIA-310-D
- envir_compliance_id: 1,11
- Height: 42U (78.4" / 1991mm)
- Weight Capacity: 3000 lbs.
- Depth: 48.1" (1222mm)
- Usable Depth: 47.2" (1199mm)
- Width: 29.5" (749mm)
- Rails: 19" EIA
The APC NetShelter SX AR3350 is a 42U 750mm Wide x 1200mm Deep Enclosure which is optimized for cable management, power distribution, and airflow management.
Includes: Baying hardware, Documentation CD, Key(s), Leveling feet, Mounting Hardware, Pre-installed casters, Side Panels, User Manual
APC AR3350 Specifications:
- Net Weight: 355.00 lbs. (161.36 kg.)
- Weight Capacity (static load): 3000.00 lbs. (1363.64 kg)
- Weight Capacity (dynamic load): 2250.00 lbs. (1022.73 kg)
- Minimum Mounting Depth: 10.31 inches (262 mm)
- Maximum Mounting Depth: 41.62 inches (1048 mm)
- Rack Height: 42U
- Color: Black
- Vertical Posts: 16 gauge
- Front Door: 16 gauge
- Rear Door: 18 gauge
- Roof: 18 gauge
- EIA Mounting Rails: 14 gauge
- Side Panels: 18 gauge
- Regulatory Approvals: EIA-310-D
- envir_compliance_id: 1,11
