APC

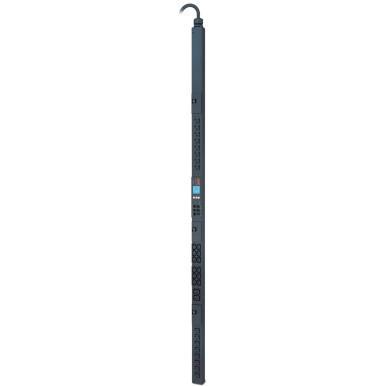

Rack PDU 2G, Metered, ZeroU, 30A, 120/208V, (16) 5-20R & (12) C13 (2) C19
Product Code:
AP8870
UPC:
731304307501
Output Connection:
5-20R
Output Connection:
C13
Output Connection:
C19
Input Connection:
NEMA L14-30P
Number of Connections:
30
$989.00
$826.44
(You save
$162.56
)
- Voltage: 120V/208V
- Amperage: 30A
- Input: NEMA L14-30P
- Output: (12) C13 + (2) C19 + (16) NEMA 5-20R
- Form Factor: 0U Vertitcal
APC AP8870 Metered Rack PDU
Input: 30A - 120, 208V
Input Connections: NEMA L14-30P
Cord Length: 10 feet (3.05 meters)
Output Connections: (16) 5-20R & (12) C13 (2) C19
Output: 120V
Mounting: ZeroU
Includes: Installation guide, Rack Mounting brackets, Safety guide, Serial configuration cable
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. Metered Rack PDUs include threshold alarms, real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
- Voltage: 120V/208V
- Amperage: 30A
- Input: NEMA L14-30P
- Output: (12) C13 + (2) C19 + (16) NEMA 5-20R
- Form Factor: 0U Vertitcal
APC AP8870 Metered Rack PDU
Input: 30A - 120, 208V
Input Connections: NEMA L14-30P
Cord Length: 10 feet (3.05 meters)
Output Connections: (16) 5-20R & (12) C13 (2) C19
Output: 120V
Mounting: ZeroU
Includes: Installation guide, Rack Mounting brackets, Safety guide, Serial configuration cable
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. Metered Rack PDUs include threshold alarms, real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
