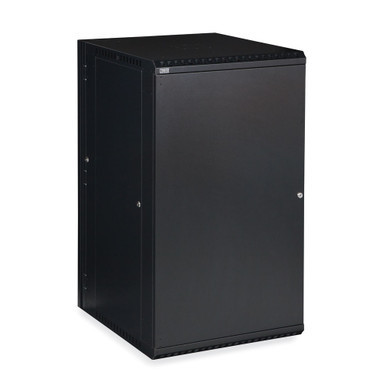

Swing-Out Wallmount Cabinet with Solid Door

LINIER® Swing-Out Wall Mount Cabinet with locking solid front door, locking removable side panels, and locking swing-out back frame.

Kendall Howard swing out, wall mount cabinets allow you to unlock and swing the cabinet 90 degrees from the wall, while hinged to its sturdy back frame. This creates an additional workspace and permits easy accessibility for terminating, installing and managing cables.

Kendall Howard LINIER Swing-Out Cabinets are designed to solve the problems technicians have while installing and managing the immense amount of cabling that is all-too-common with datacom and telecom equipment. LINIER Swing-Out Cabinets, swing-out 90 degrees from the wall and have removable locking side panels giving easy access to all four sides of the cabinet. Locks keep equipment secure, while removable cable slot panels make managing cables simple. When heat is an issue, simply install the optional fan kit (sold separately) into the laser knockouts.

Kendall Howard 3131-3-001-xx series Swing-out Rack Features:

• Front Door - Solid (locking), Side Panels - Solid (removable, locking)
• 90 degree swing-out back frame
• Removable laser knockouts for fans / cable slots
• One set of cage nut style mounting rails
• Mounting Depth: 22.5"
• 150 lb. weight capacity
• 19" EIA 310-D compliant
• Made in the USA
• 5-Year Limited Warranty

Economical Design - Smartly engineered to include all the features you would expect, at a competitive price point, and with the quality that comes with American manufacturing.

90 Degree Swing-Out - Lockable enclosure can be swung out 90 degrees from the back frame allowing access to the rear of installed equipment. This capability provides additional space and accessibility for terminating, installing, and managing cables.

Numerous Laser Knockouts - Strategically placed laser knockouts provide a plethora of locations to feed copper or fiber optic cabling into the cabinet, or to install an optional fan kit for temperature control.

Adjustable Rails - The included set of cage nut style rails fully adjust in 1″ increments to accommodate the various depths of equipment on the market. Additional rails are available for devices that require 4-point mounting.

Removable Side Panels - Easy to remove side panels provide more access for growing or changing cabling schemes, as well as offer the option for increased air flow to prevent equipment from overheating.

Locking Door and Side Panels - The locking feature provides additional security for all three access points, to keep your valuable rack mounted equipment safe from unauthorized use.

Reversible Solid Door - Solid door can be removed or reversed to be left or right mounted, to accommodate your particular installation. The solid door allows you to enclose and secure your network system.

Kendall Howard 3131-3-001-xx series Swing-out Rack Specifications:

• Height: 6U, 9U, 12U, 15U, 18U, 22U
• Weight Capacity: 150 lbs.
• Depth: 26.64"
• Usable Depth: 22.5"
• Width: 23.5"
• Rails: 19" EIA
